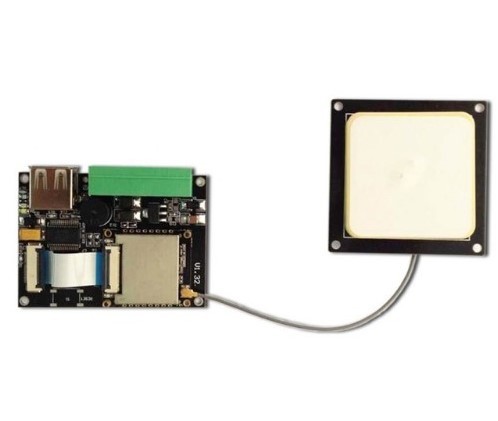

PR9200 uhf rfid reader module embedded antenna module with usb rs232 TTL wiegand interface

PR9200 chip uhf rfid reader module embedded antenna module with usb rs232 TTL wiegand interface

Model number:CZS6147

EMAIL



FEATURES

has an outstanding performance with Low-Power

Low-Power:

◆No heat during long-term continuous full load working atroom temperature.

◆Continuous Current<200mA/3.5V(26 dBm Output).

◆Continuous Current<110mA/3.5V(18 dBm Output).

◆Supports USB powered.◆Supports independent power supply.

Supports two installation methods:

◆Can be used as a Desktop Reader.

◆Can be wall-mounted, used as Access Control.


Model Number and Size

CZS6147 with board: 61*47*12mm, without board: 28*25.5*2.5mm

Frequency

902Mhz – 928Mhz     or   865MHz – 868MHz

chipPR9200 chip

Reading   Distance

1cm-15m read range (depend on antenna,environment,application)

Connector

 usb ,RS232 /Wiegand 26 /Wiegand 34(optional)

Baud rate

115200 bps(default and recommended)     38400bps

Supply   Voltage

USB (5V), supply power 9v

Air   Interface Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Output Power

0-26dBm(adjustable)

Read multi-tag

1- 50 Tag/Second

Tag   cache

200 Tags@ 96 bit EPC

low power  consumption

Sustained current <200mA / 3.5V (26 dBm Output)

Sustained current <110mA / 3.5V (18 dBm Output)


Operating   Temperature

- 20 °C           -    + 70    °C

Storage   Temperature

- 20 °C           -    + 85     °C

Humidity

< 95% ( + 25 °C)

Output Power Precision

+/- 1dB

Output   Power Flatness

+/- 0.2dB

Receiver   Sensitivity

< -70dBm

Tag RSSI

Supported

Heat Dissipation

No heat sink required





700-500 产品应用图.jpg


Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg




Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

 RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
