SMARTRAC DogBone UHF RFID tag Wet Inlay paper label tag Adhesive sticker M750

SMARTRAC DogBone UHF RFID tag Wet Inlay paper label tag Adhesive sticker M750

SMARTRAC DogBone UHF RFID tag Wet Inlay paper label tag Adhesive sticker
M750

The tag with excellent strong performance , is popular for lots of application

Product Model: CZS-M750

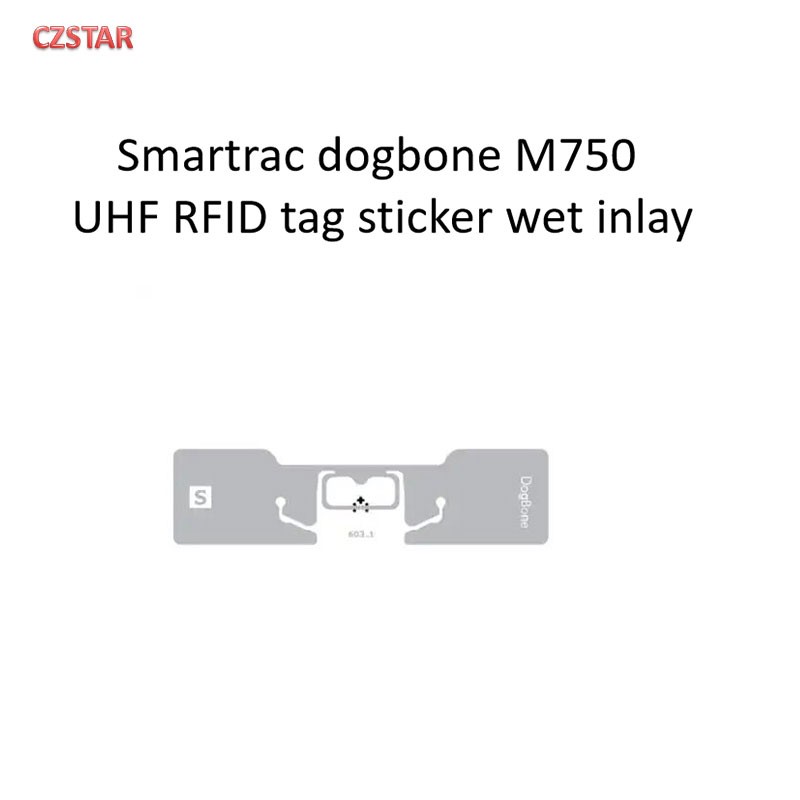

SMARTRAC DogBone UHF RFID tag Wet Inlay paper label tag Adhesive sticker M750

Why choose this tag?

The Smartrac DogBone RFID Tag M750 excels with superior performance inside of demanding environments and on tough-to-tag materials, due to the tag's exceptional tolerance against the detuning effect of high dielectric materials. With the M750 IC, the Smartrac DogBone RFID Paper Tag contains 96-bit EPC memory and 32-bit user memory. These tags offer an enhanced 'autotune' adaptive RF tuning feature, which helps ensure quality work at peak efficiency, even in rapidly changing environments. The M750 IC is compatible with the Global GS1 UHF Gen2v2 standard and has a privacy mode that enables loss prevention and protects consumer privacy. Further, these tags are manufactured to the industry's highest quality standards, as confirmed by the RFID lab at Auburn University.

The Smartrac DogBone RFID Tag is designed for global supply chain, industrial, RTI and sports timing applications. This tag, equipped with the M750 IC, is manufactured to the highest quality standards, with significant ARC accreditation for quality as confirmed by the RFID lab at Auburn University.

Features :

Global Global (860-960 MHz) UHF epc gen2 .

Memory: EPC 96 Bits, TID 96/48 Bits, User 32 Bits.

Autotune feature, which helps to work at peak efficiency, even in rapidly changing environments.

Privacy mode enabling loss prevention and protects consumer privacy.

Manufactured to the highest quality standard with significant ARC accreditation for quality as confirmed by Auburn University.

Applications: industry, supply chain management, and sports timing.

Product Details:

Product Model: CZS-M750

Dimensions: 97 x 27 mm (3.82 x 1.06 in)

Protocol: EPC Class 1 Gen 2, ISO 18000-6c

Frequency: Global (860-960 MHz) UHF epc gen2

Chip: Impinj M750

Function: read and write

Memory: EPC 96 Bits, TID 96/48 Bits, User 32 Bits.

EPC Memory Content:Unique, auto-serialized

Read Distance:Testing recommended

Operating Temperature: -40° to +85°C (-40° to +185°F)

Customize service：

1) Customize Size : Can Customize the tags with different size

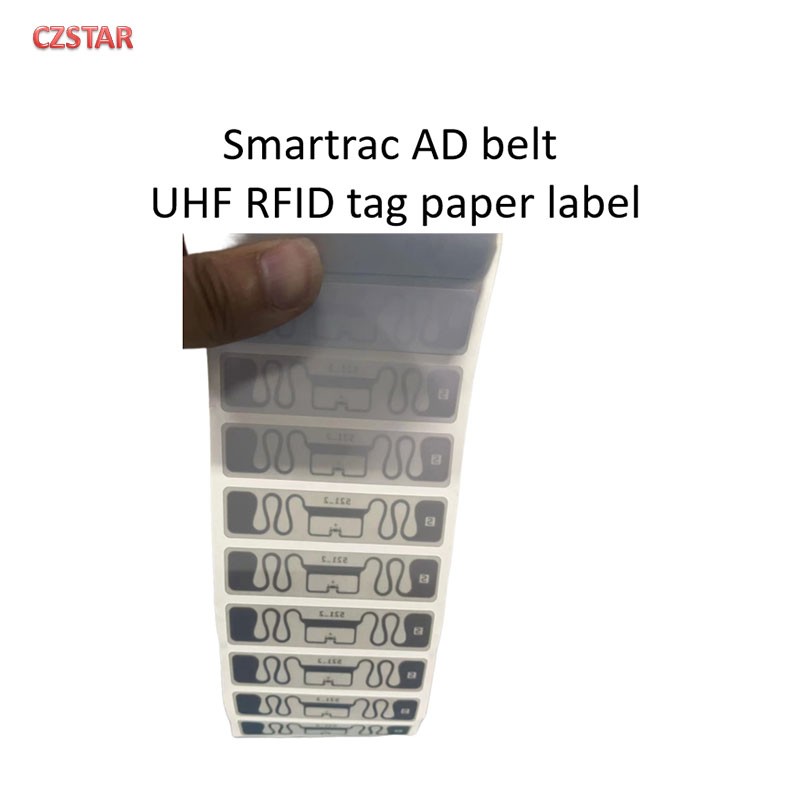

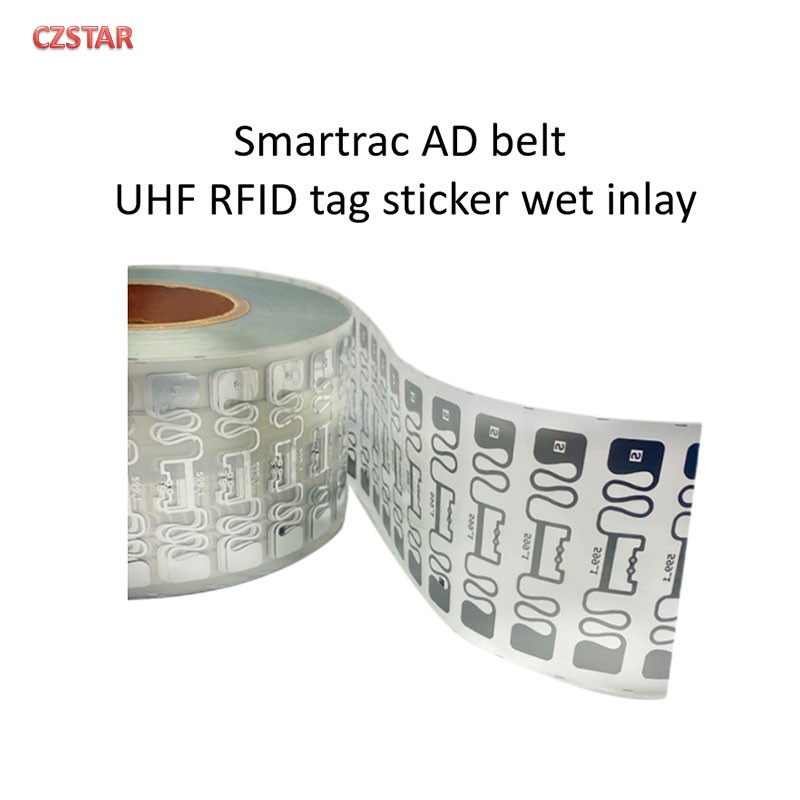

2) Various model：We have the tags with wet inlay type (transparent color) , paper label type ( white color)

3) Printed service：Printed Tag ID , Barcode ,QR , company logo/website ,words content etc.

4) Program Service: Can program the tag data into customer's request date

700-500 产品应用图.jpg

Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg

Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
