10m long range handheld uhf rfid reader impinj r2000 chip multi tag reading Android systems rfid tag scanner reader support Android Java c# sdk

10m long range handheld uhf rfid reader impinj r2000 chip multi tag reading Android systems rfid tag scanner reader support Android Java c# sdk

Model number:CZS60

EMAIL


10m long range handheld uhf rfid reader impinj r2000 chip multi tag reading Android systems rfid tag scanner reader support Android Java c# sdk

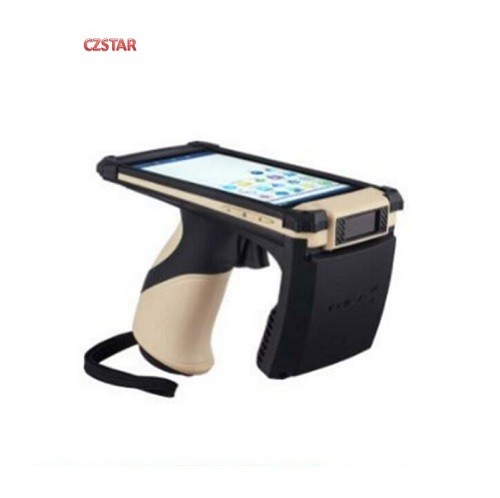

CZS60 is an Android handheld uhf rfid reader ,work like a rugged mobile phone computer. It features powerful processor, 6000mAh battery and superb UHF RFID capability. It can be equipped with impinj R2000  chip can read multi-tags 1-500tags/second . That it can read tags in bulk from long distance enables it to be deployed in asset inventory management, retail, warehousing, fleet management and etc.


Support multi-functions:wifi, Bluetooth, 1D,2D barcode scanner,camera, 3G/4G communication,GPS,GPRS etc.

Performance

CPU

Quad-core Cortex-A17/1.8GHz

RAM+ROM

2 GB/32G +4 GB/64G

Expansion

Supports up to 128 GB Micro SD card

Operating System

Android 6 Soti MobiControl, SafeUEM supported

Communication

WLAN

IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal

antenna





WWAN (China)

2G: 900/1800 MHz

3G: WCDMA: B1,B8

CDMA2000 EVDO: BC0

TD-SCDMA: B34,B39

4G: B1,B3,B5,B8,B34,B38,B39,B40,B41



WWAN (Overseas)

2G: 850/900/1800/1900 MHz

3G: B1,B2,B4,B5,B8

4G: B1,B2,B3,B4,B5,B7,B8,B12,B17,B20,B25,B40,B66

WWAN (Others)

Depending on the country's ISP

Bluetooth

Bluetooth v2.1+EDR,3.0+HS,v4.1+HS

GNSS

GPS/AGPS, GLONASS, BeiDou; internal antenna

Physical Characteristics

Dimensions

164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.

Weight

654 g / 23.07 oz.

Display

5.0'' IPS FHD 1920 x 1080

Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported




Power

Li-ion, rechargeable, 9000 mAh

Standby: over 500 hours

Continuous use: over 12 hours (depending on user environment)

Charging time: 3-4 hours (with standard adaptor and USB cable)

Expansion Slot

1 slot for SIM card, 1 slot for SIM or TF card

Interfaces

USB 2.0 Type-C, OTG, TypeC headphones supported

Audio

Speaker, 2 microphones

Keypad

4 front keys, 1 power key, 2 scan keys, 1 multifunctional key

Sensors

Gravity sensor, light sensor, proximity sensor

Developing Environment

SDK

czstar Software Development Kit

Language

Java,Android

Tool

Eclipse / Android Studio

UHF RFID

UHF

Engine

 based on Impinj Indy R2000

Frequency

865-868 MHz / 920-925 MHz / 902-928 MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Linear polarization or circular polarization

Power

1 W (30 dBm, +5 dBm to +30 dBm adjustable)

2 W Optional (33 dBm, for Lati America, etc.)



read range

1m-25m(circular polarization); 1-10m (linear polarization),read Ranges depend on antenna tags and environment

Reading rate

1-200 tags/s ,read rate depend on antenna tags and environment


Barcode Scanning (Optional)

1D Linear Scanner

Zebra: SE965; Honeywell: N4313



1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Imager Scanner

Zebra: SE4710 / SE4750 / SE4750MR; Honeywell: N6603



2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.



Mecanical parame


700-500 产品应用图.jpg


Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg




Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

 RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
